Fits 1-3/8" to 1-3/4" doors 6-pin SC "C" key way solid brass Cross Bore - 2-1/8", Edge: 1" Faceplate - 1-1/8" x 2-1/4" square corner Strikeplate - 4-7/8" x 1-1/4" ASA strike Bolt - 1/2" throw Reversible for left or right hand doors. (Except interconnected passage)

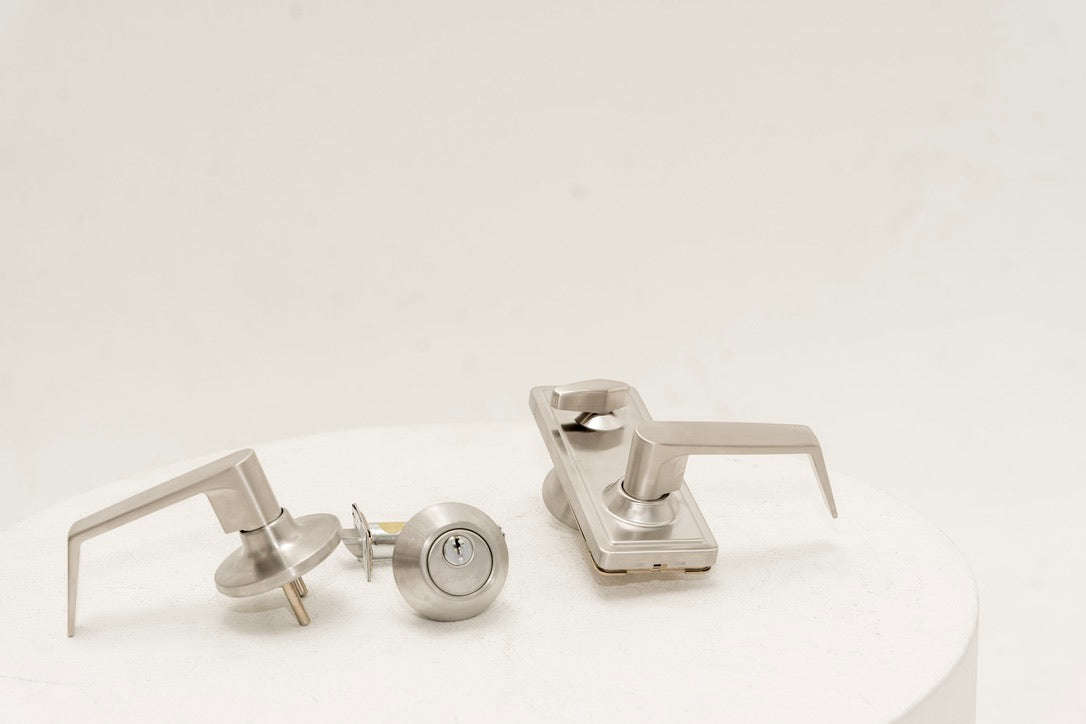

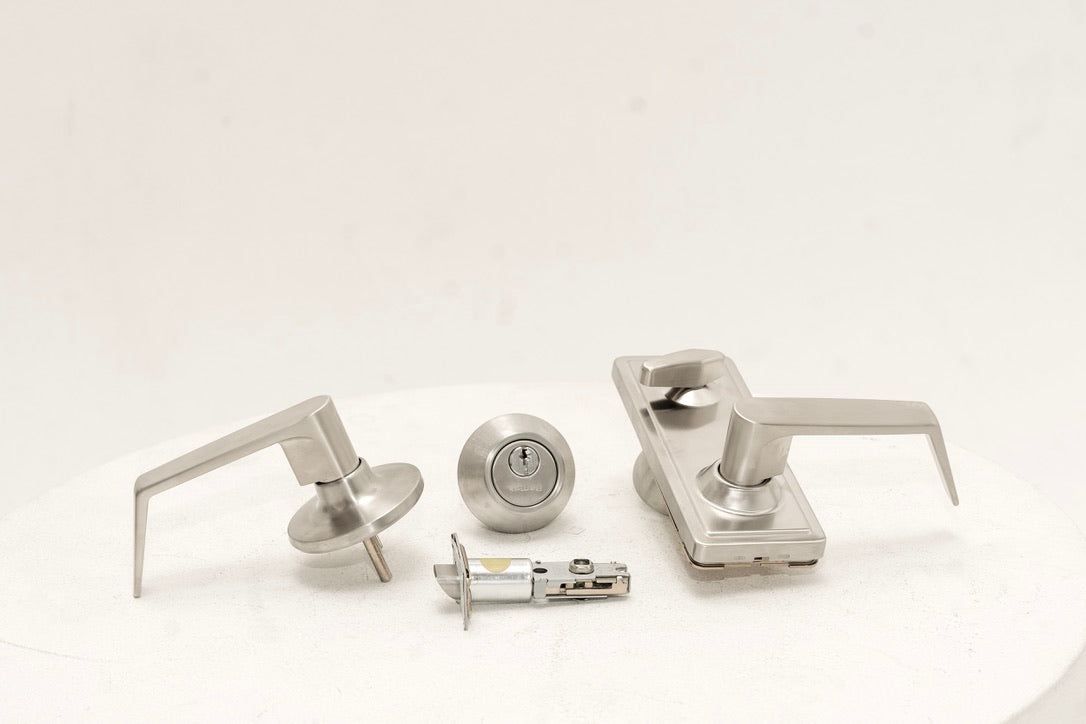

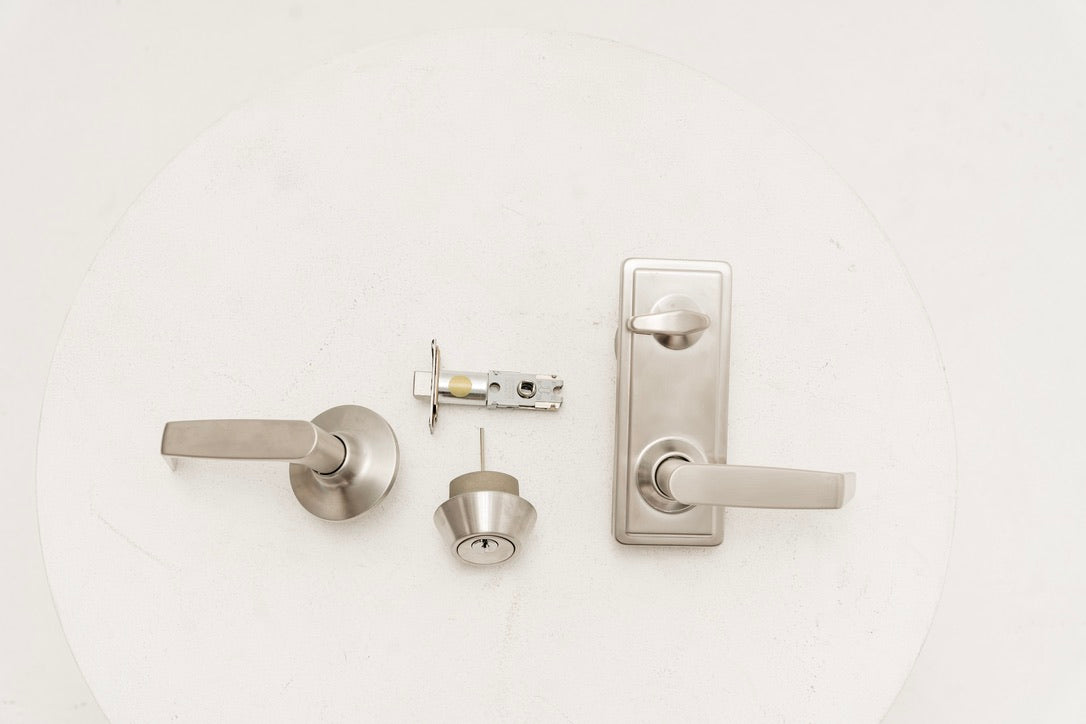

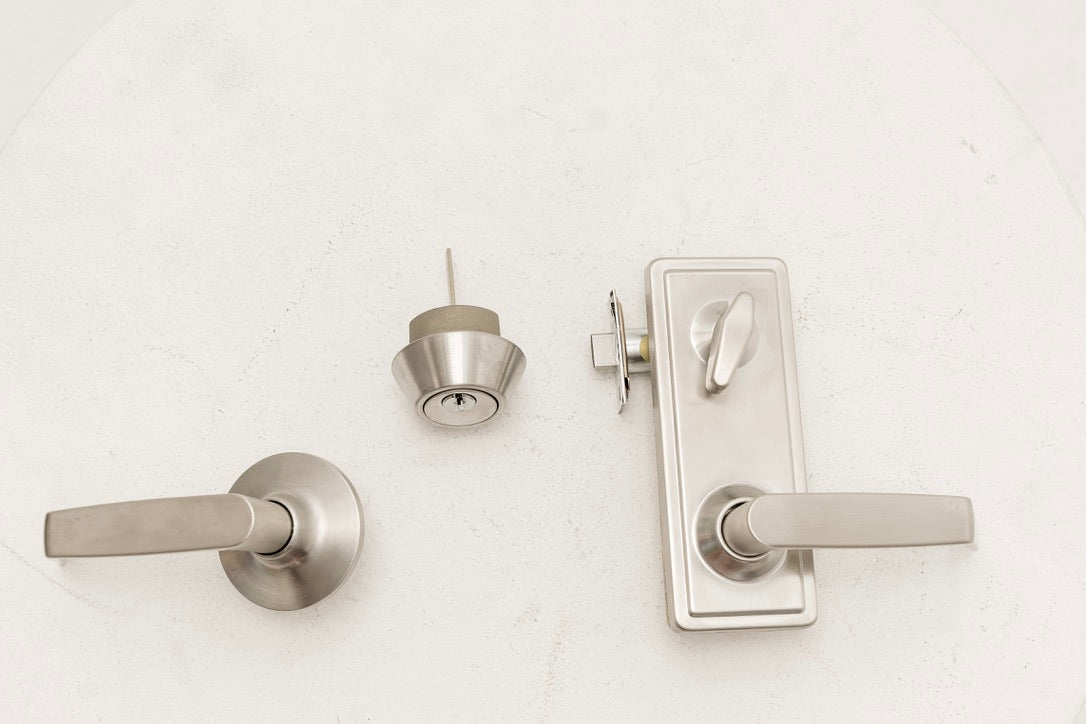

Interconnected Single Locking (Box of 6): Deadbolt is operated by key outside and turn piece inside. Latchbolt retracted by lever from either side. Inside lever retracts deadbolt and deadlatch simultaneously for panic exit. *Must specify left or right handed.
Meets ANSI/BHMA A 156.2, Series 4000, Grade 2 Meets ADA Requirements UL 3-Hour Fire Rated
