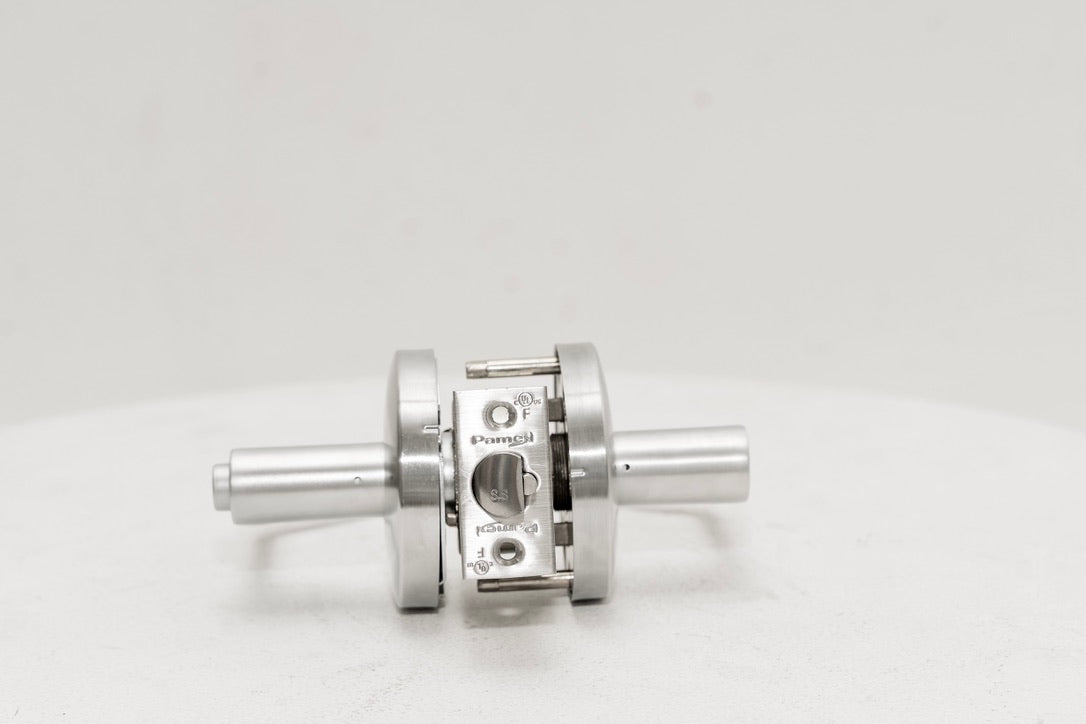

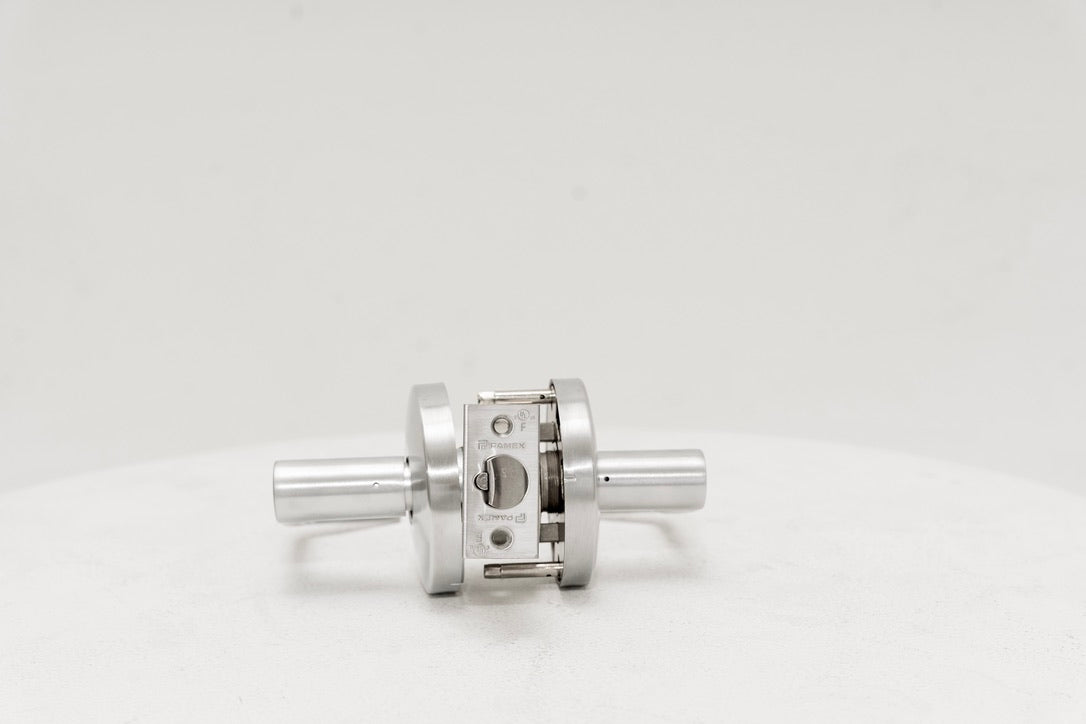

Fits 1-3/8" to 1-3/4" doors 6-pin SC "C" key way solid brass Cross Bore - 2-1/8", Edge: 1" Faceplate - 1-1/8" x 2-1/4" square corner Strikeplate - 4-7/8" x 1-1/4" ASA strike Bolt - 1/2" throw Reversible for left or right hand doors. (Except interconnected passage)

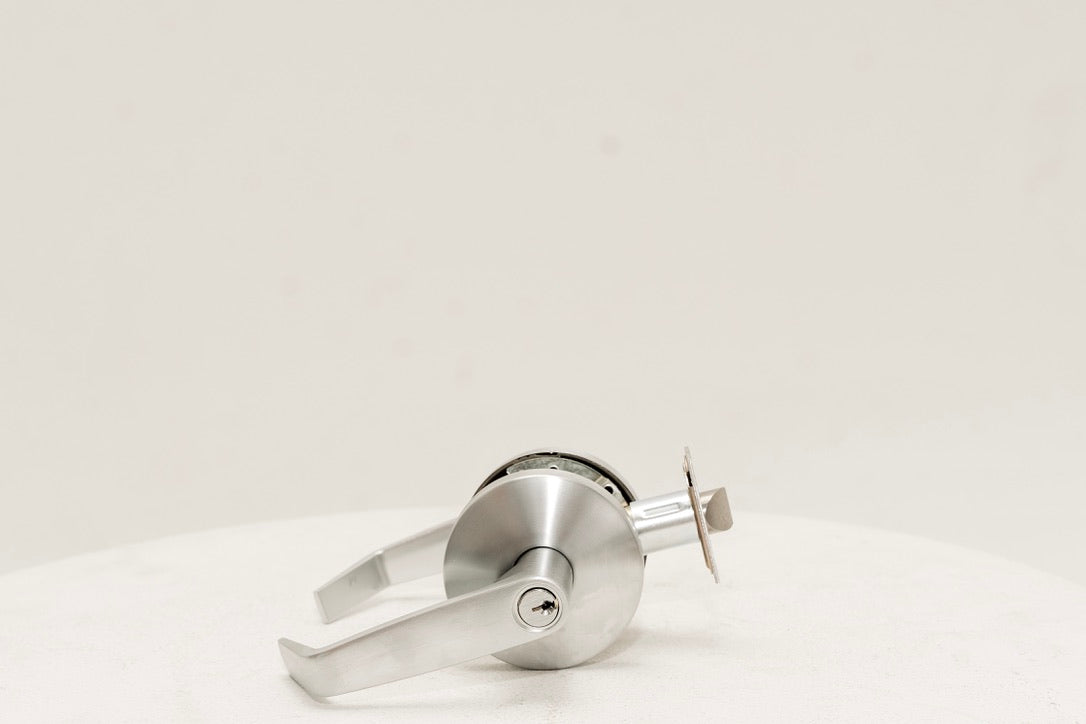

Entry (Case of 12): Turn/Push Button locking: PUSHING button locks outside lever until unlock with key or inside lever is turned. PUSHING and TURNING inside button locks outside lever requiring the use of key to open until button is manually unlocked. Inside lever always free.

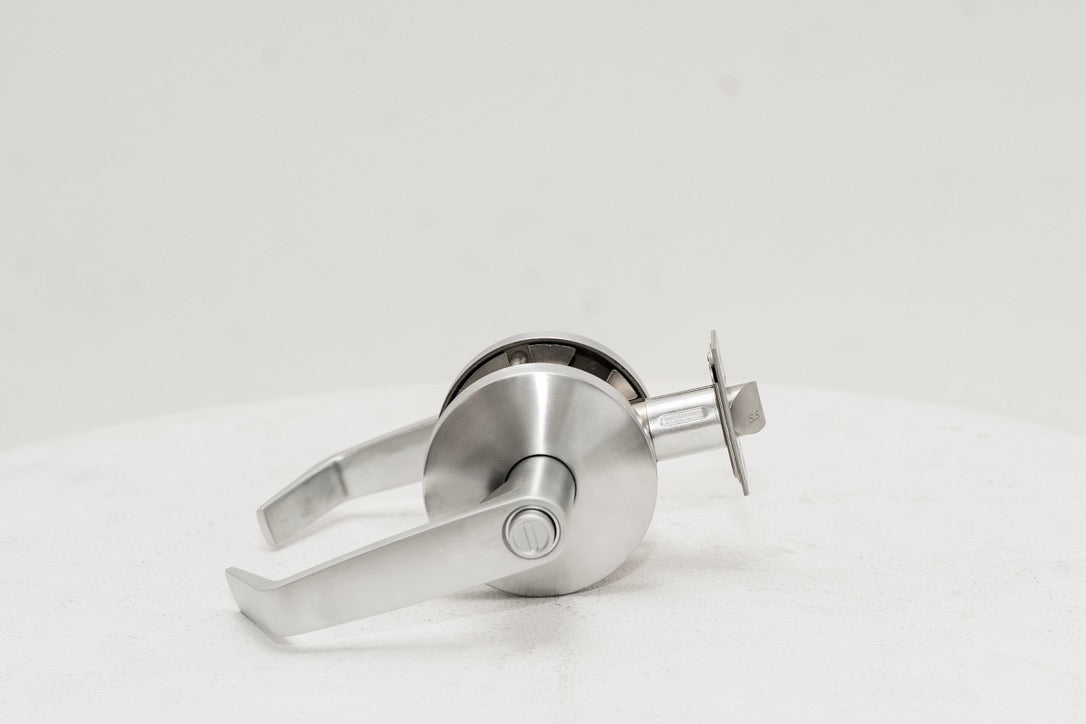

Passage (Case of 12): Both levers always free.

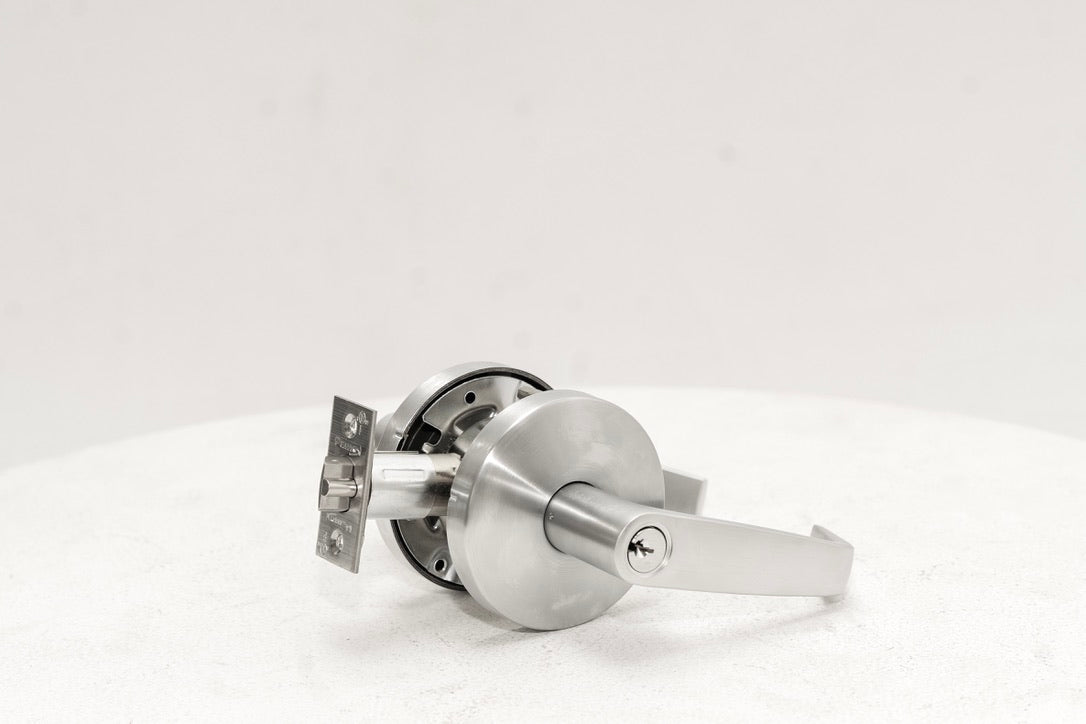

Storeroom (Case of 12): Outside lever always fixed and unlocked by key only. Inside always free
Classroom (Case of 12): outsider lever locked or unlocked by key. Inside always free.
Meets ANSI/BHMA A 156.2, Series 4000, Grade 2 Meets ADA Requirements UL 3-Hour Fire Rated
